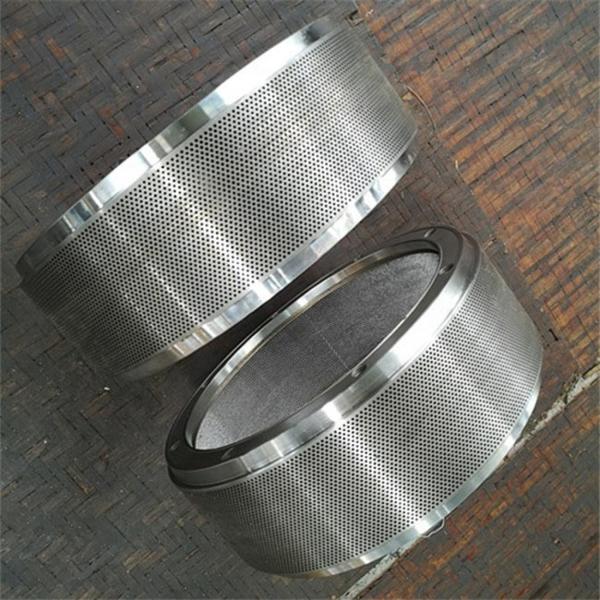

SS X46Cr13 Pellet Machine Ring Die

SS X46Cr13 Feed Pellet Die Manufacture CPM 7932 Pellet Die

For Pellet die manufacture ,we have own auto gun-drilling machines (12 sets), auto counter-sinking machines, auto lathing machines, vacuum heat treatment machines.

A good pellet mill die can improve product quality and output, reduce energy consumption (granulation energy consumption accounts for 30%-35% of the total energy consumption of the entire workshop), and reduce production costs (the cost of pellet mill die loss accounts for 25%-30% of the maintenance cost of the entire production workshop).Pellet dies must resist abrasion, corrosion from chemical exposure and breakage caused by the physical stresses of pellet formation. The optimum die combines high resistance to abrasion, breakage and corrosion with maximum productivity.

Highlight:

1. Select quality forging stock, but general companies select casting stock
2. Use gun drill , the hole is completed by one time, nice appearance, high capacity
3. Use America vacuum oven and advanced treatment craft, ensure twice service life
4. Strong R&D help customer design compression ratio and strength according to requirements, Ensure pelleting effect and high quality of product

The Pellet die raw material :

1. Stainless steel: Chinese Standard: X4Cr13, Germany Standard: X46Cr13.

2. Alloy steel :20CrMnTi

3. Diameter of ring die can do: 1.0mm up to 28mm.

4. Pellet die type can do: Ring Die or Flat Die

The difference between different raw materials :

• 1. Alloy dies are the choice for many biomass processors because of their good abrasion and breakage resistance
• 2. Chrome dies (less used )have superior corrosion resistance, making them the choice for processing operations involving corrosive chemicals
• 3. Stainless steel dies have the best abrasion and breakage resistance as well as good corrosion resistance

Generally pellet Mill dies size :

1. Yulong Pellet machine ring die :XGJ850/560

2. For Zhengchang pellet mill: SZLH250, SZLH300,SZLH320,SZLH350,SZLH400,SZLH420,SZLH508, SZLH678, SZLH768, etc
3. For Muyang pellet mill: MUZL180, MUZL350, MUZL420, MUZL600, MUZL1200, MUZL610, MUZL1210, MUZL1610, MUZL2010;
4. MUZL350X, MUZL420X, MUZL600X, MUZL1200X(Especially for shrimp feed pellet, diameter: 1.2-2.5mm)
5. For Awalia pellet mill: Awalia 420, Awalia350, etc
6. For Buhler pellet mill: Buhler304, Buhler420, Buhler520, Buhler660, Buhler900, etc.
7. For Kahl pellet mill(Flat die): 38-780, 37-850, 45-1250, etc
8. For IDAH pellet mill:PM-42L,PM-51SA,PM-53SA,PM-53SC,PM-53WS,PM-635D

Customized pellet mill die accept .

Animal pellet mill die processing :

gun-drilling machine+ auto counter-sinking machine+vacuum heat treatment machine..

WARM TIPS:
1.The rollers should be correctly adjusted, make sure the hole inlets are not damaged by contact with the rollers or as a result of tramp metal;
2.Material should be evenly distributed across the whole working area;
3.Make sure that all holes work uniformly, opening the clogged holes if necessary;
4.When changing dies, carefully inspect the condition of the die seating surfaces and fixing systems including collar, clamp or wear ring.

How to choose the compression ratio :
